Vitrine Poster window » Design Design
Dezembro 2024 December 2024

O Hub Criativo da Mouraria necessitava de uma vitrine exterior para divulgar eventos participativos abertos ao público. A estrutura, destinada ao muro externo junto à entrada do jardim, deveria ser de grandes dimensões (adequada a cartazes A0), hidrófoba, duradoura e versátil. Foi lançado o desafio à Novonovo.

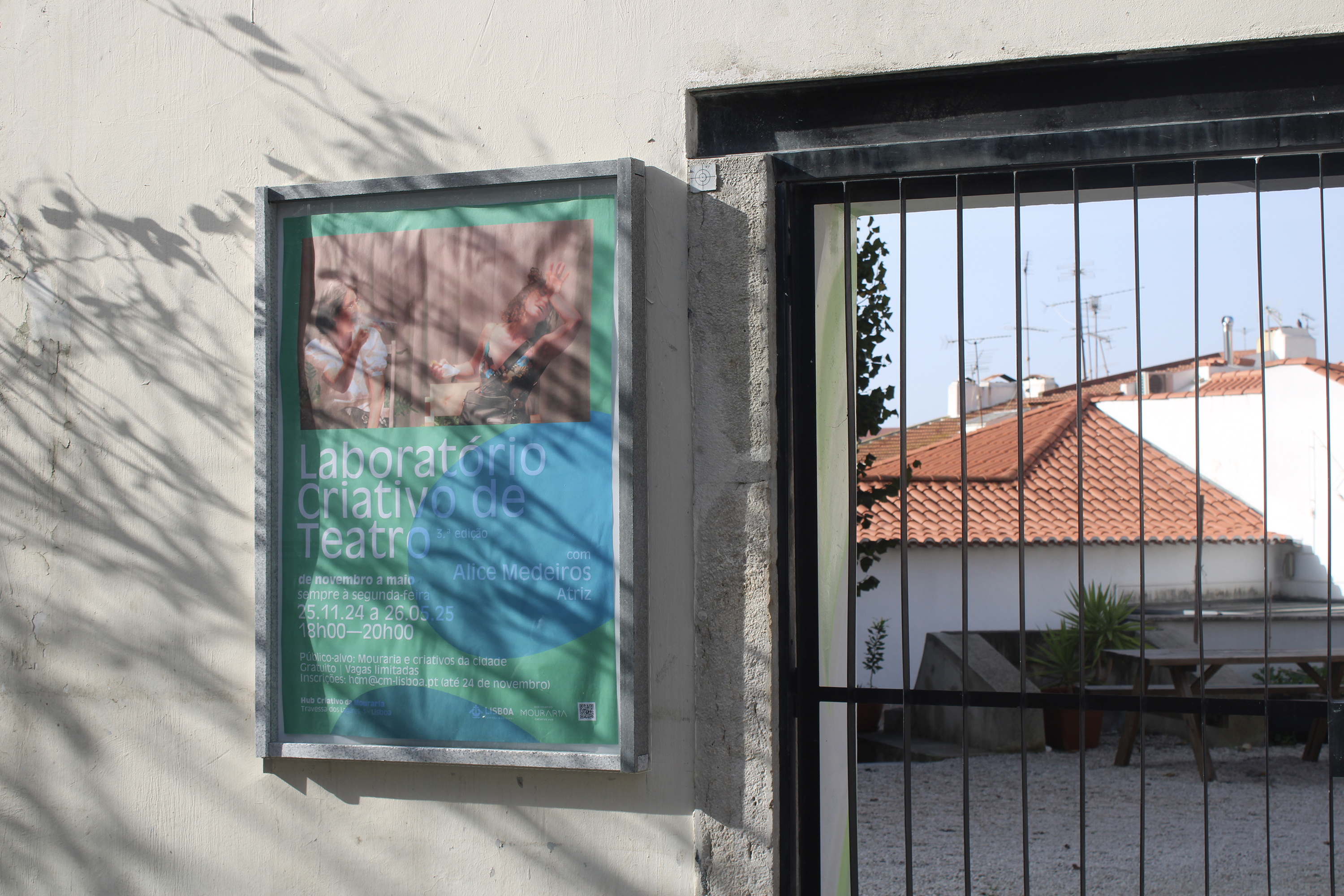

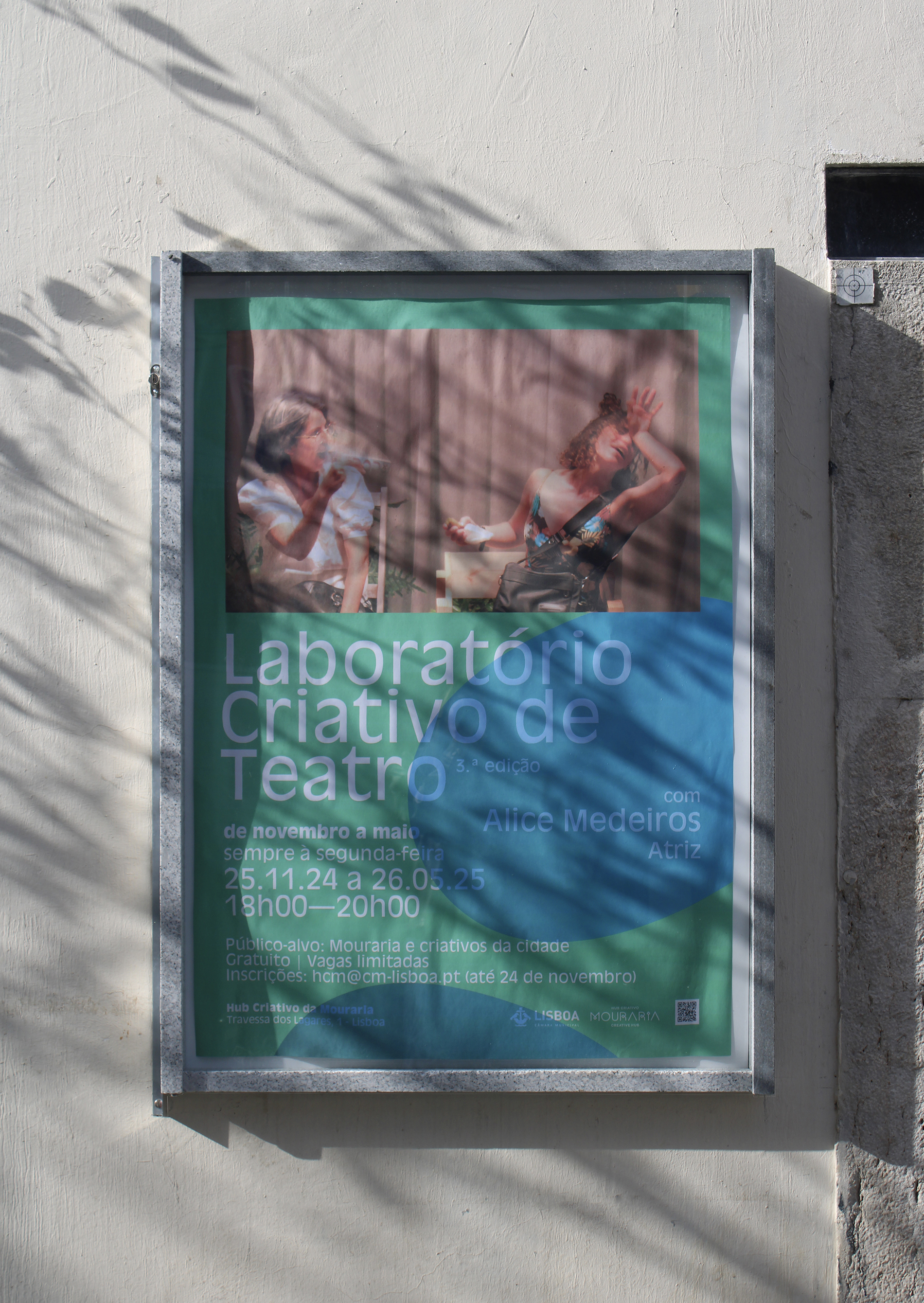

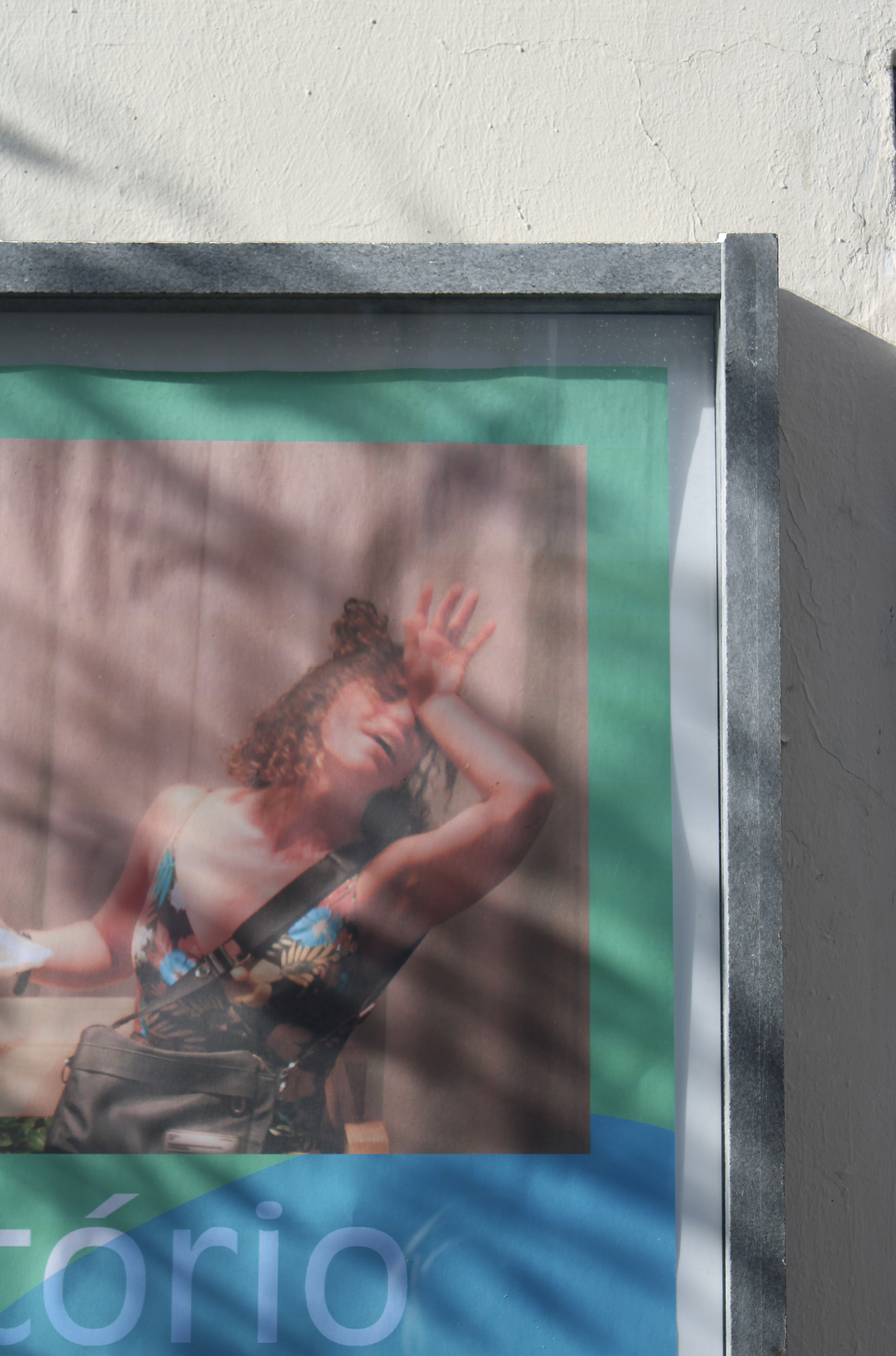

The Hub Criativo da Mouraria required an exterior poster window to advertise public participatory events held at the venue. The structure, intended for the outer wall near the entrance to the garden, needed to be large in size (suitable for A0 posters), waterproof, durable, and versatile. The challenge was given to Novonovo.

Objeto/componentes

Object/components

+

Vitrine

Poster window

Dimensões:

Dimensions:

+

90 X 124 X 3 cm

Materiais secundários:

Secondary materials:

+

Granito

Granite

Outros Materiais:

Other Materials:

+

Acrilico, barra de alumínio

Acrylic, aluminium bar

Após um estudo prévio, decidiu-se utilizar barrotes de granito provenientes de excedentes de produção para criar uma estrutura sólida e resistente, enquanto a cobertura e o suporte dos cartazes seriam em acrílico, um material prático, funcional, de fácil substituição e reciclável (ao contrário do vidro temperado).

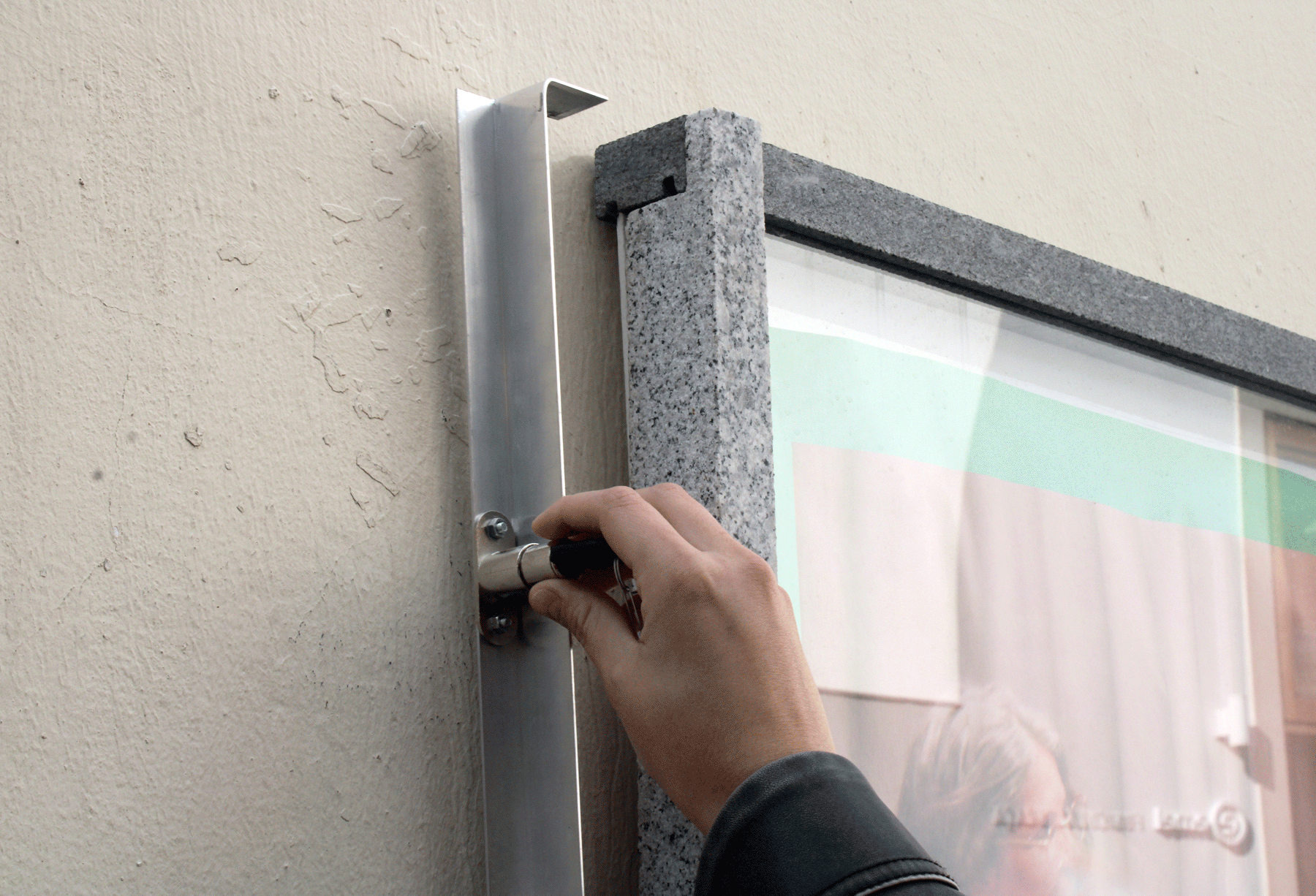

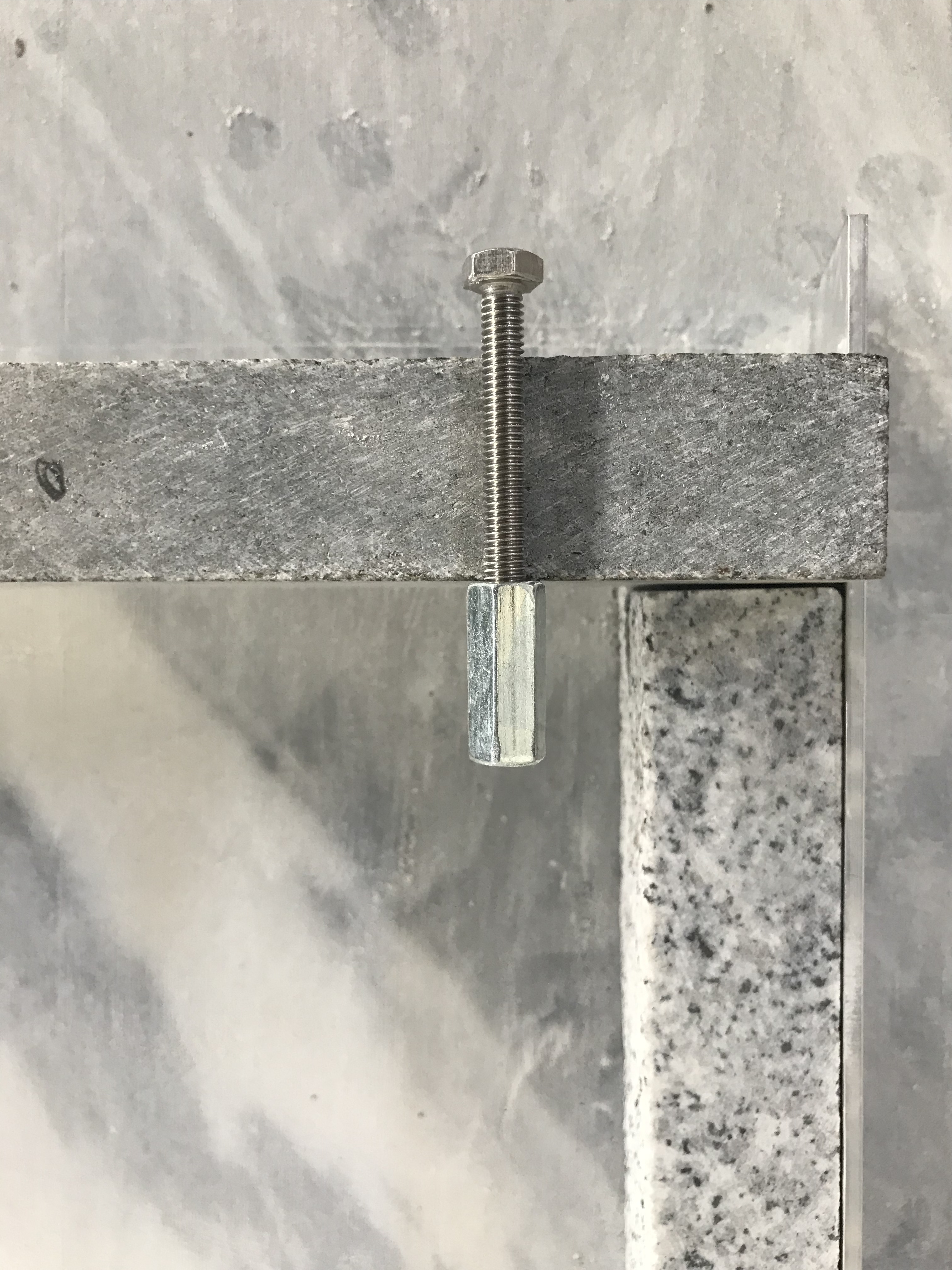

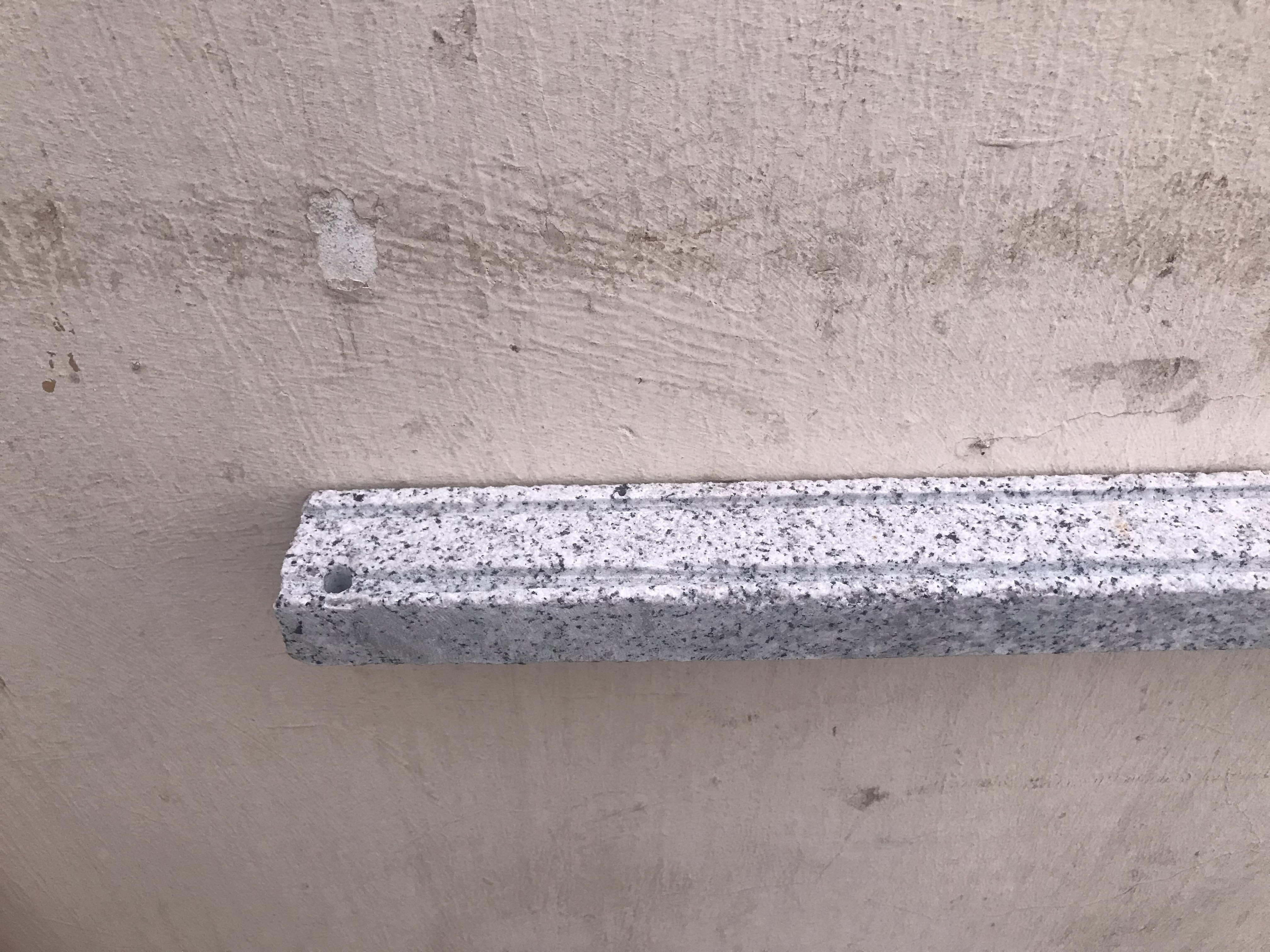

A solução implementada resultou numa estrutura modular de quatro peças. No granito, foram escavados carris para o encaixe dos painéis de acrílico, e colocados varões para a fixação à parede. Três peças ficaram fixas à parede e a quarta peça aparafusada e removível garante a possível substituição do acrílico exterior. O acrílico traseiro, que suporta os cartazes, é igualmente removível após a abertura de um sistema de fecho feito à medida.

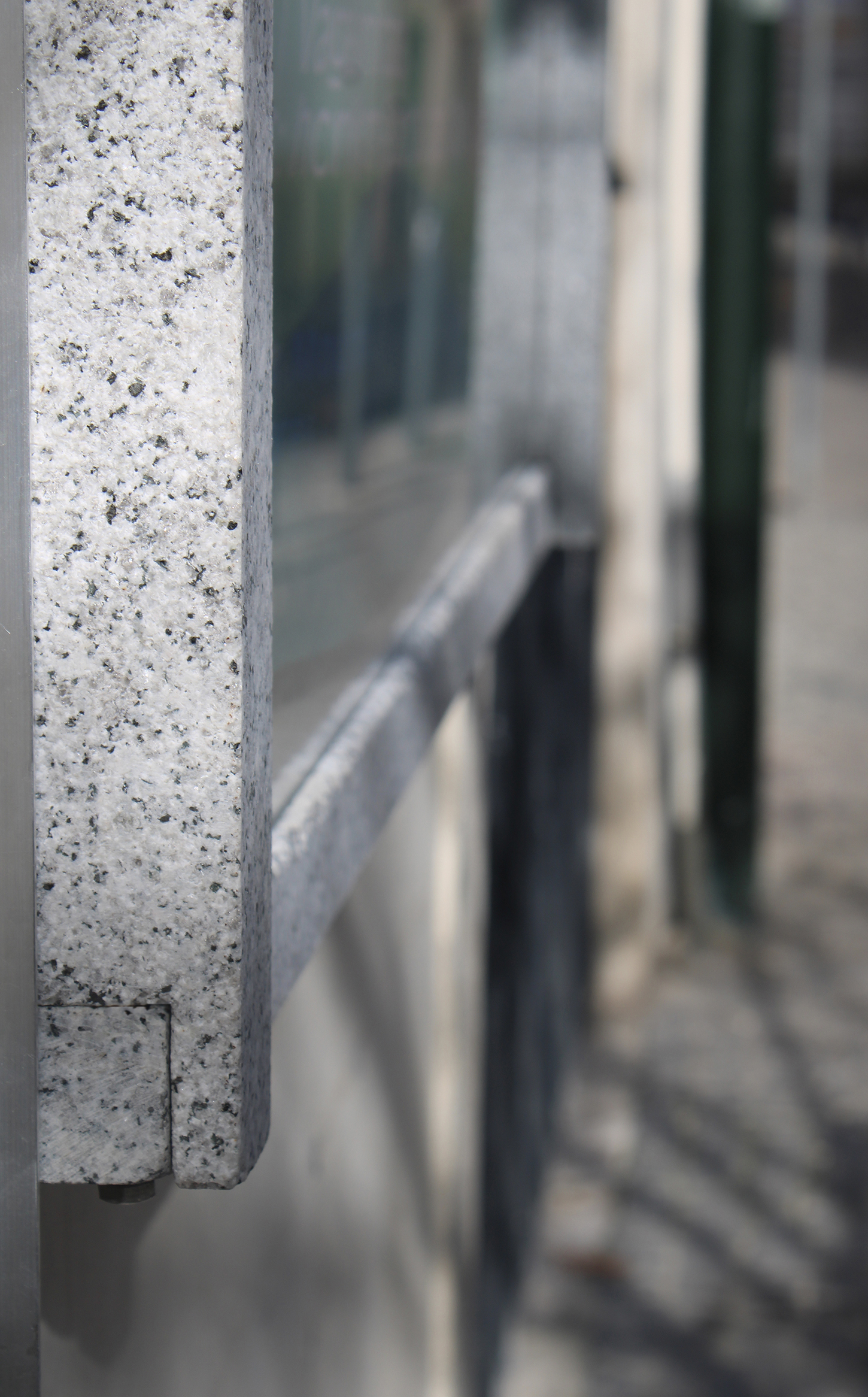

O desenho foi desafiante, pois era necessário garantir a versatilidade para a substituição dos cartazes e para a eventual substituição do acrílico exterior, conferindo à pedra características versáteis e incomuns. A escolha deste material também se integra no contexto envolvente, onde a pedra está presente tanto nas zonas exteriores como interiores do edifício, conseguindo dar destaque à vitrine ao mesmo tempo que se funde discretamente no ambiente.

After a preliminary study, it was decided to use granite beams from the production surplus to create a solid and durable structure. At the same time, the cover and support for the posters would be made of acrylic, a practical, functional material that is easy to replace and recyclable (unlike tempered glass).

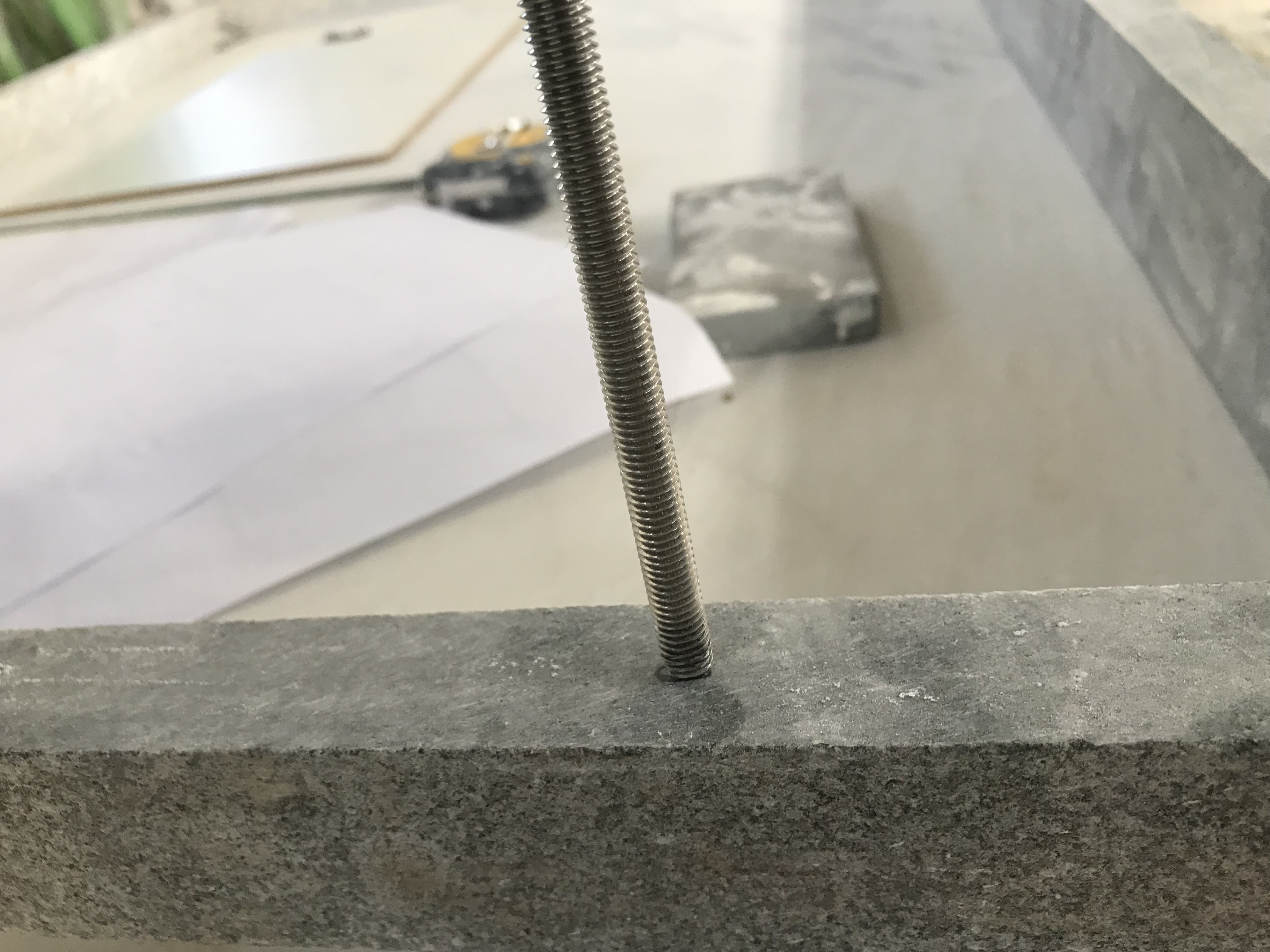

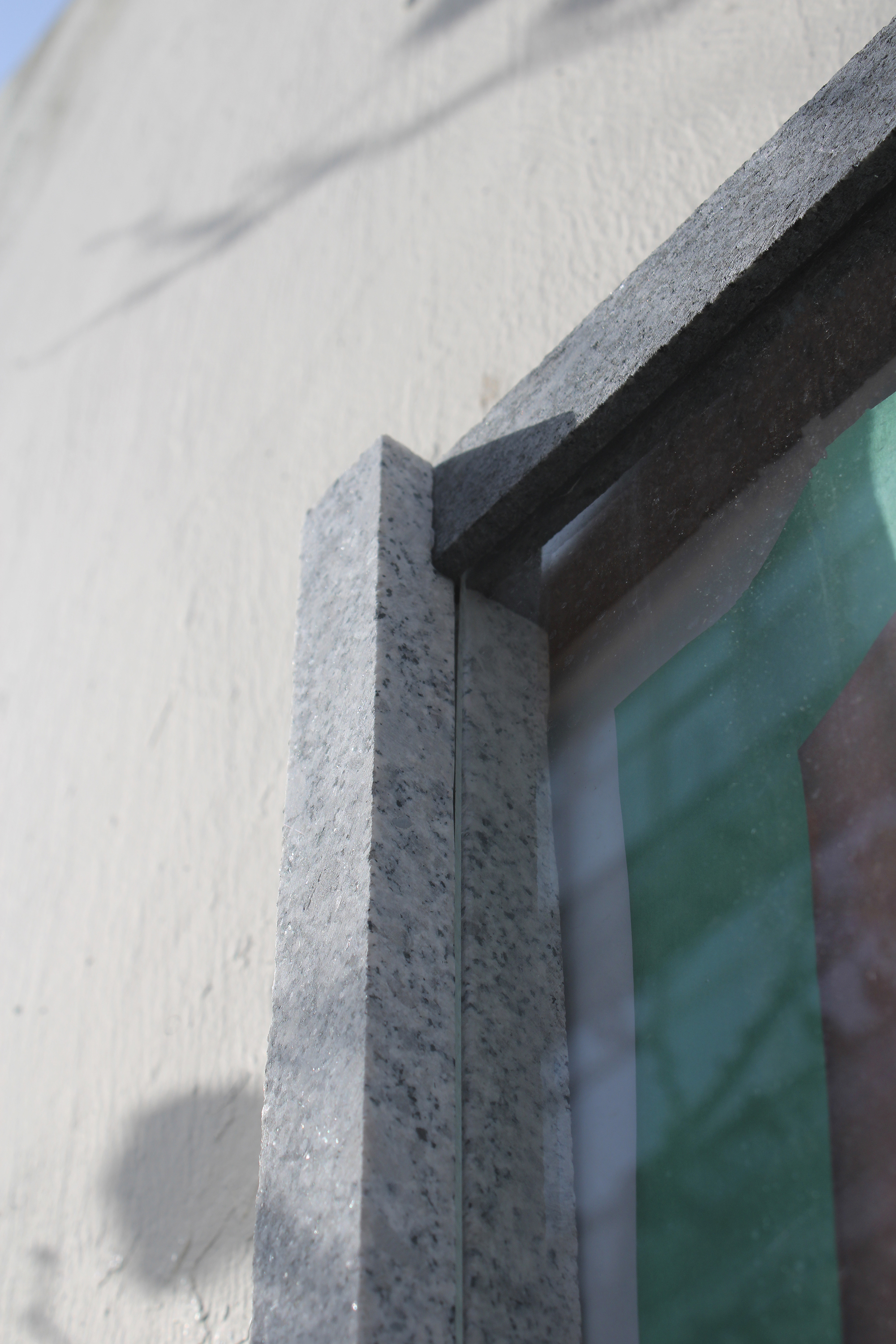

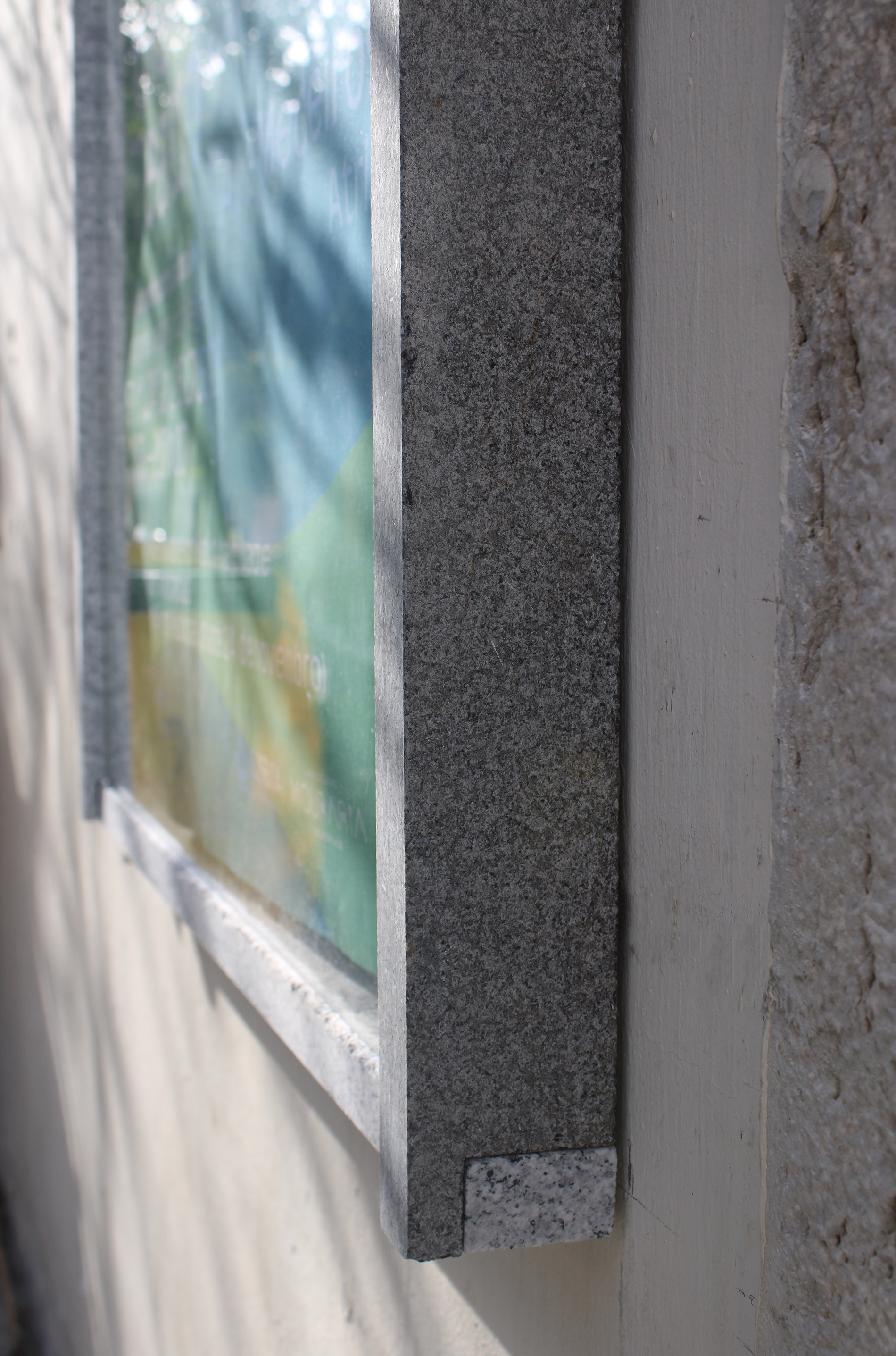

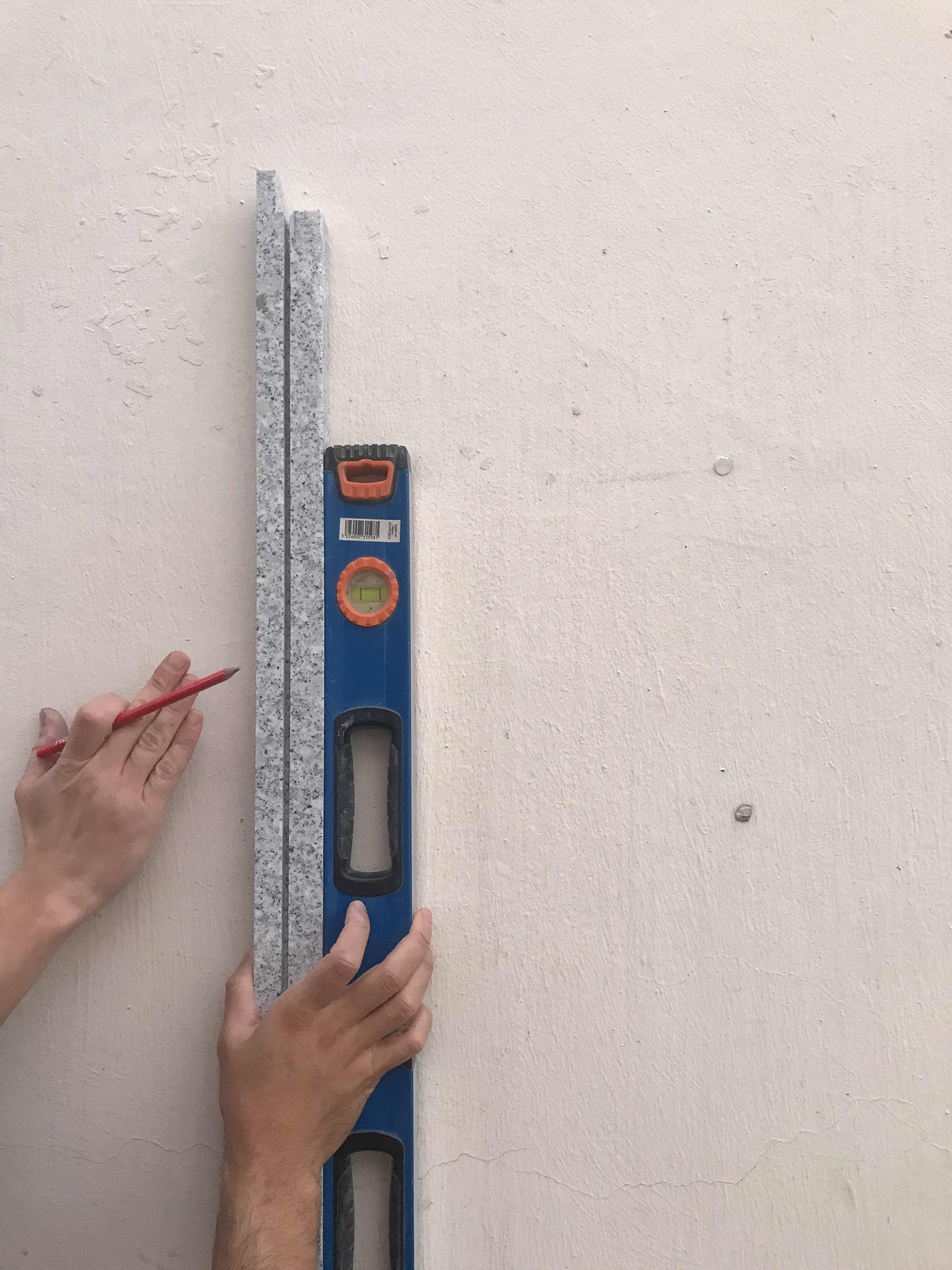

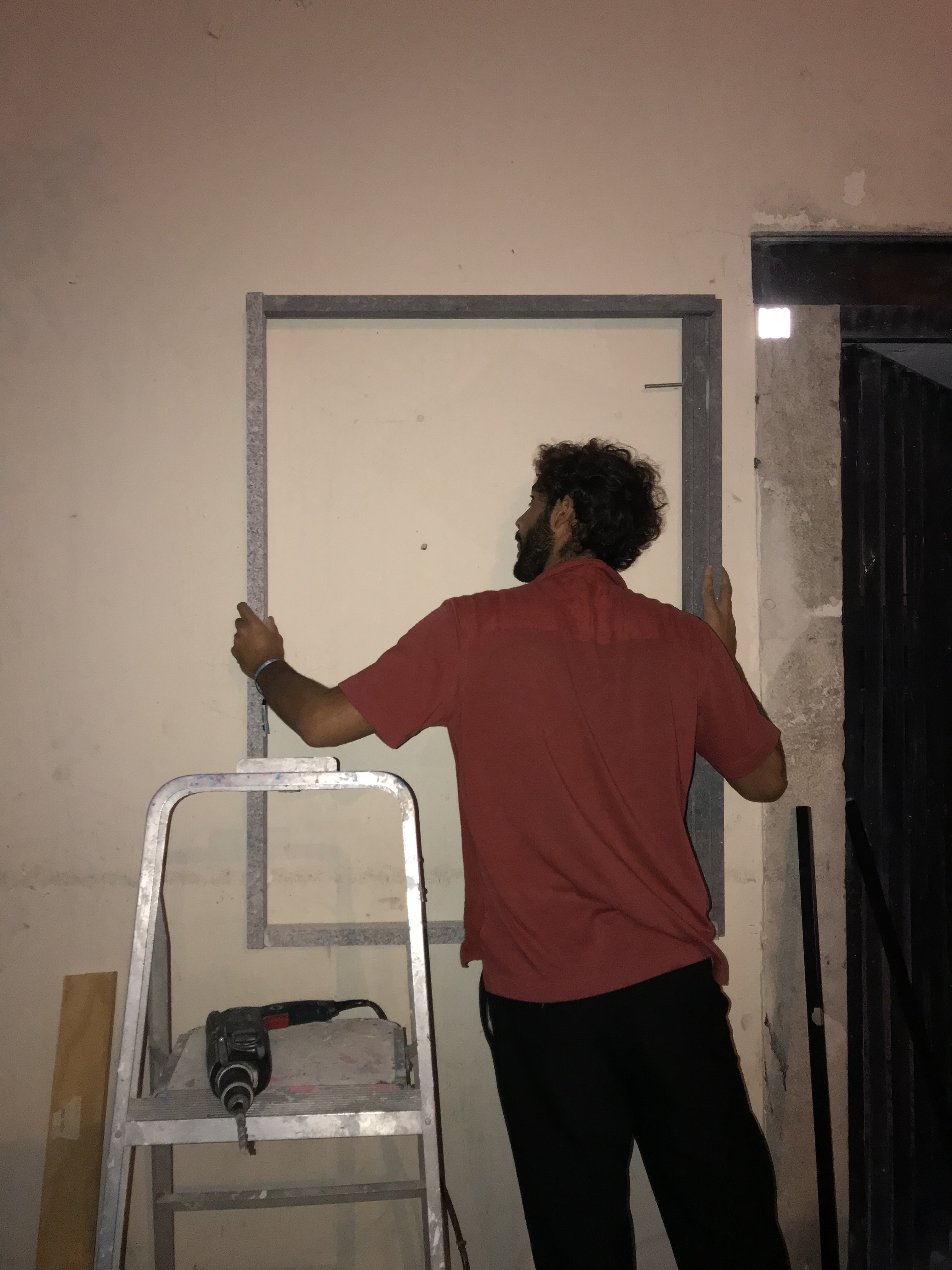

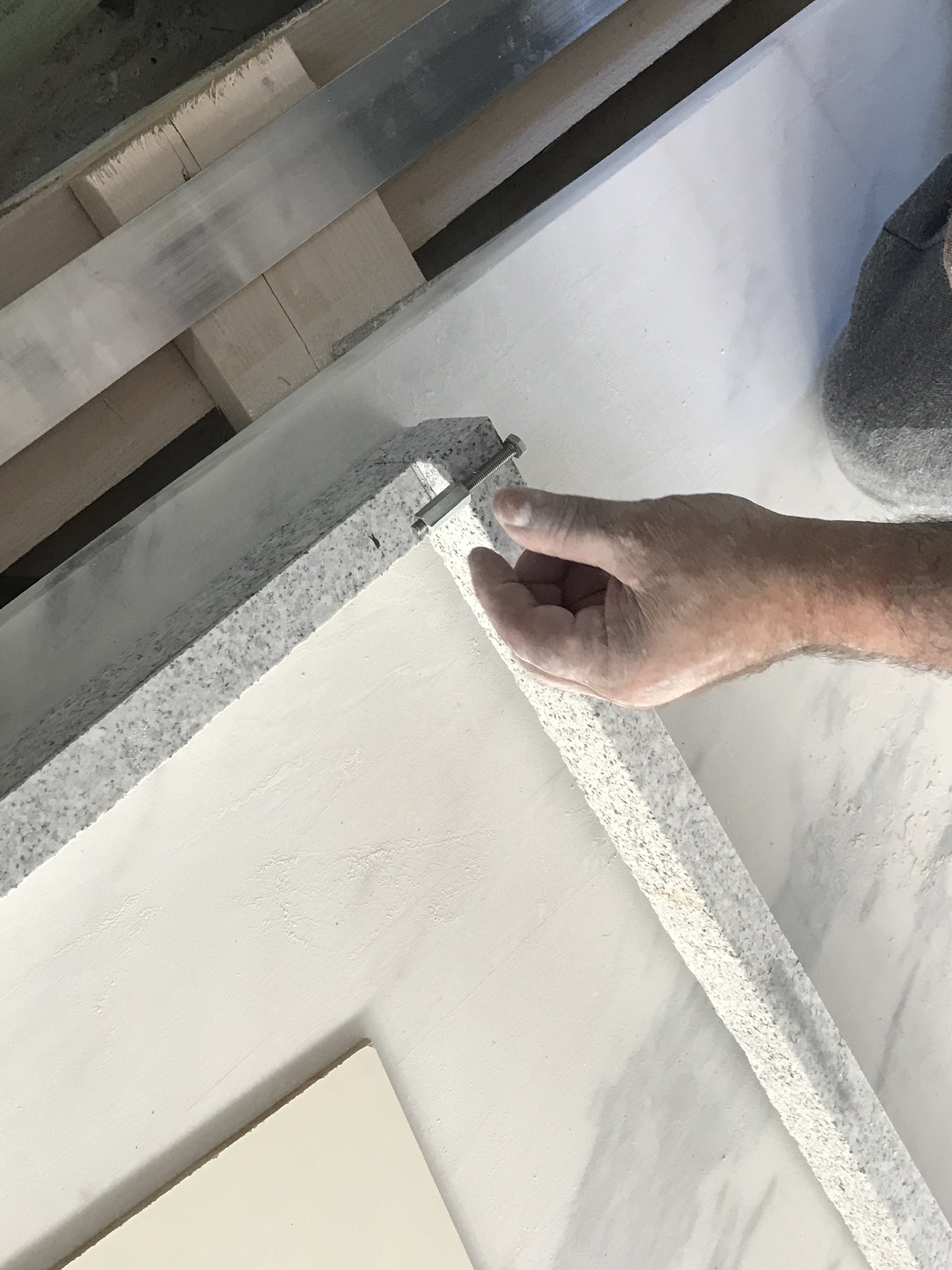

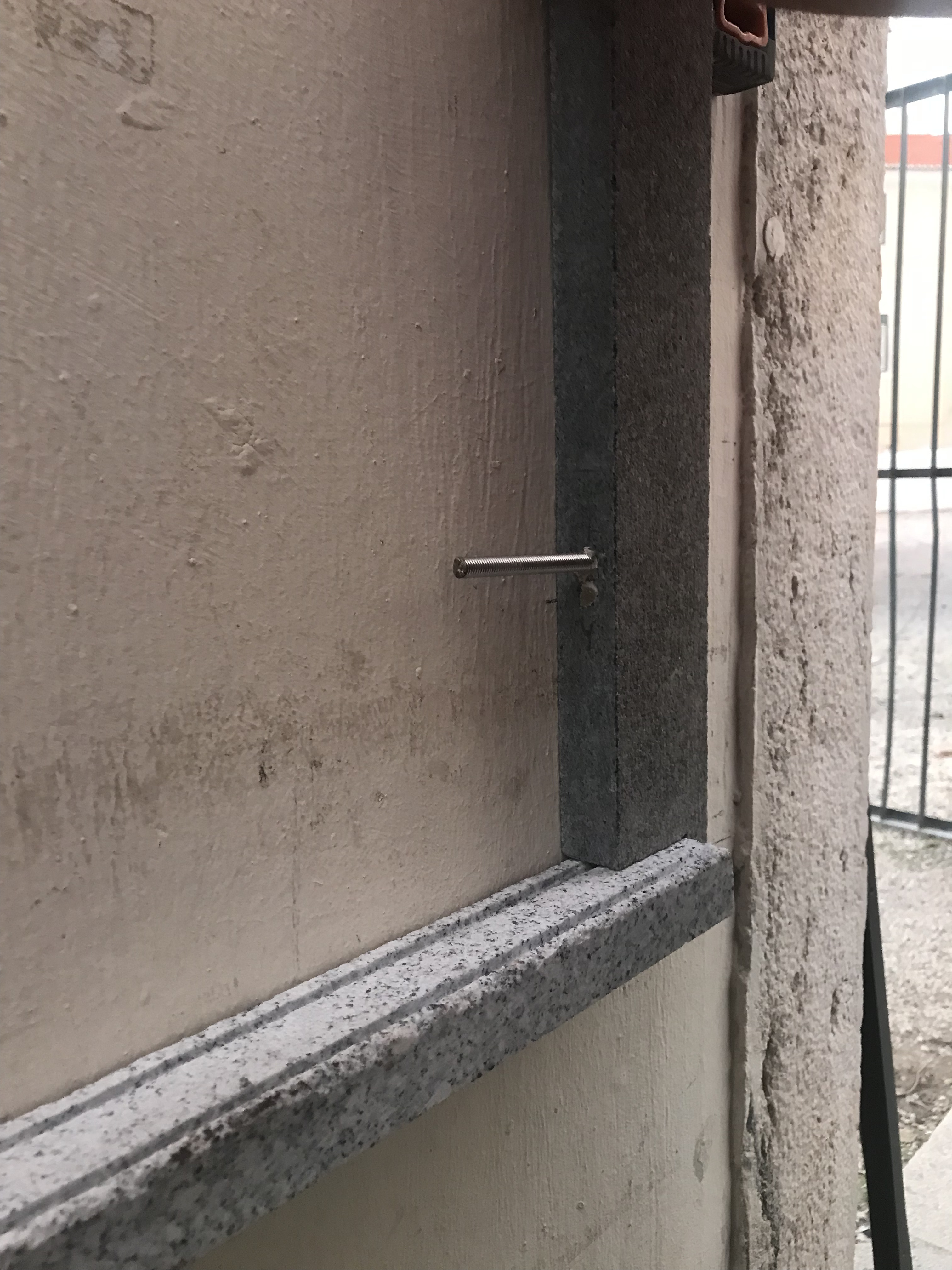

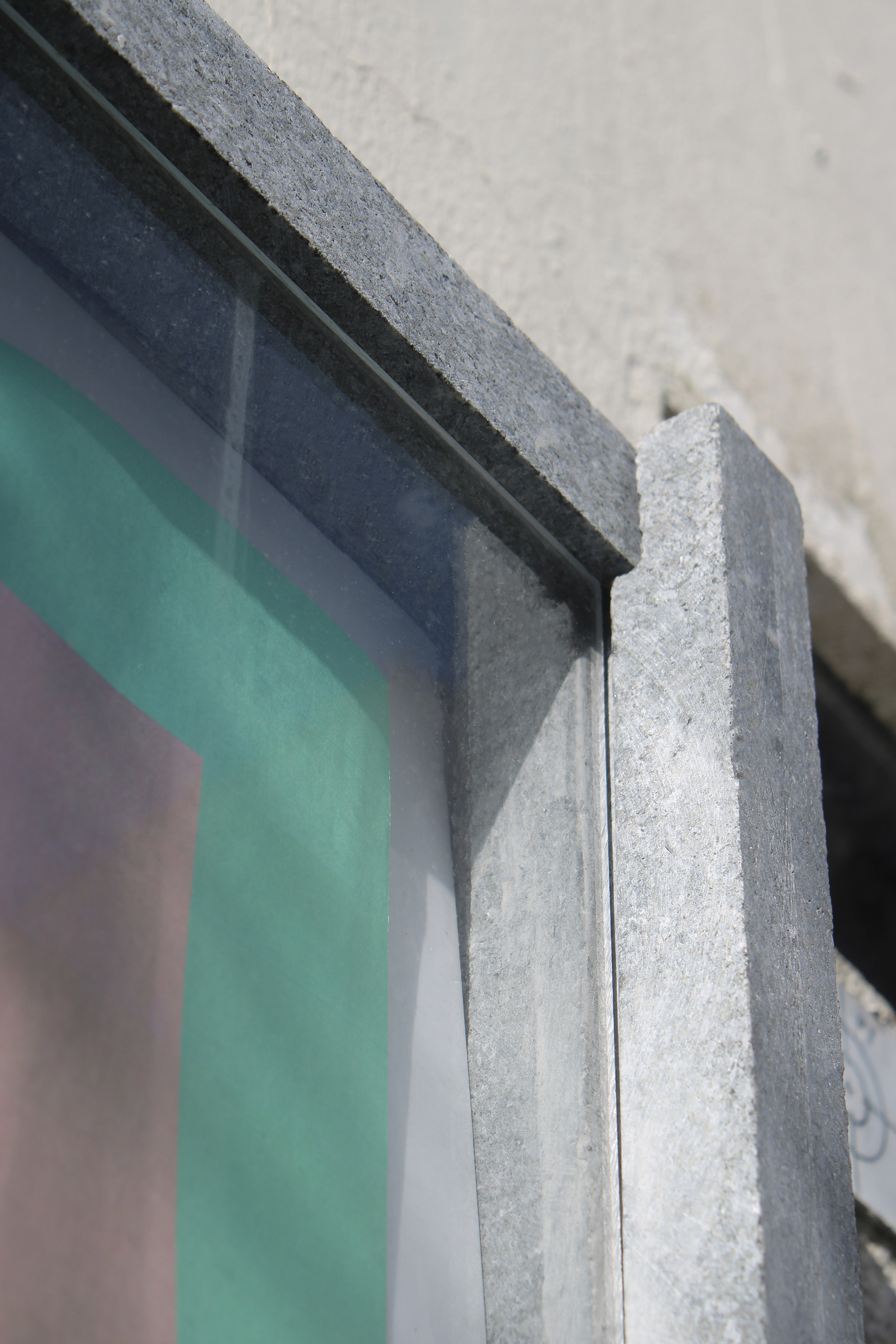

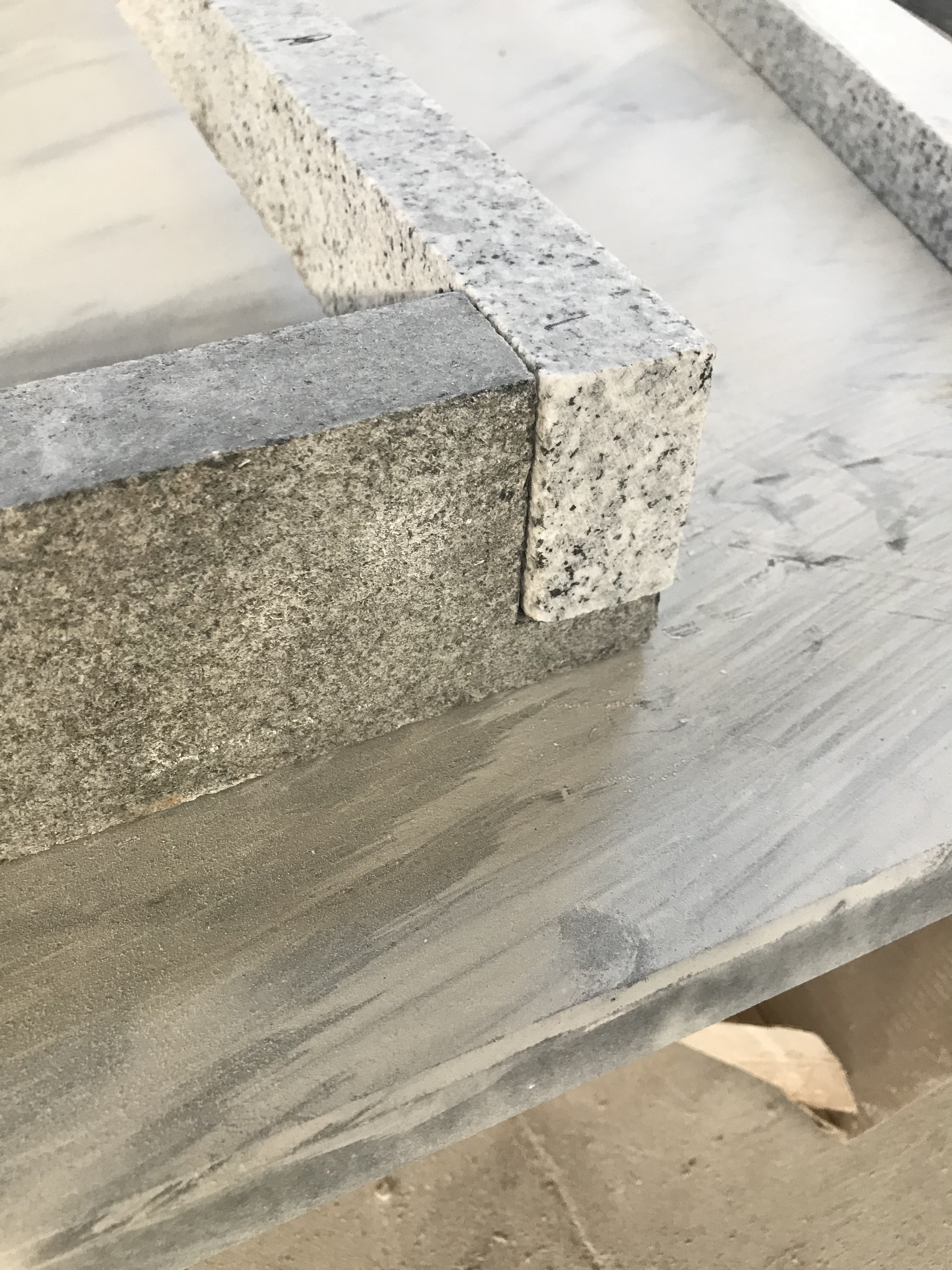

The implemented solution resulted in a modular structure consisting of four main pieces. Carries were carved into the granite to hold the acrylic panels, and rods were fixed to secure the structure to the wall. Three pieces were fixed to the wall, while one piece was screwed and removable to allow for the replacement of the exterior acrylic. The rear acrylic, which supports the posters, is also removable after opening a custom locking system.
The design was challenging, as it was necessary to ensure versatility for the window’s use and the eventual replacement of the outer cover while giving the stone uncommonly versatile characteristics. The choice of this material also integrates into the surrounding context, where stone is present both in the exterior and interior of the building, allowing the window to stand out while subtly blending into the environment.

Materiais utilizados
Materials used

Granito branco

White granite

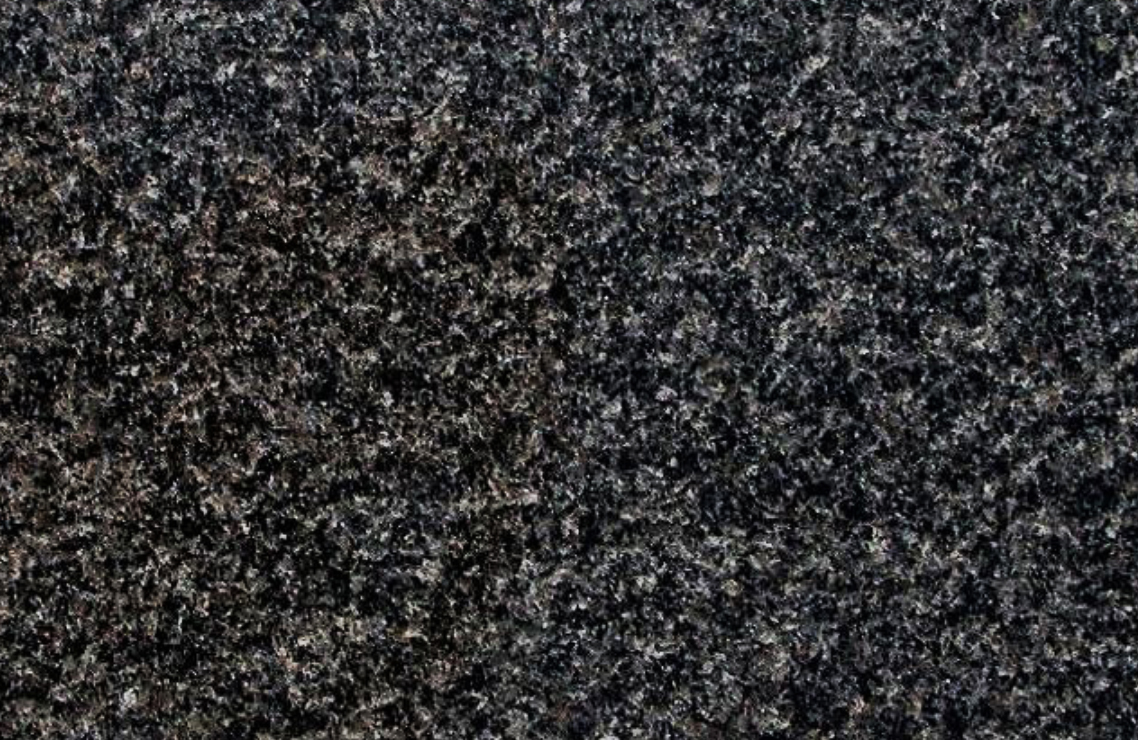

Granito cinza escuro

Dark gray granite

Design

1.

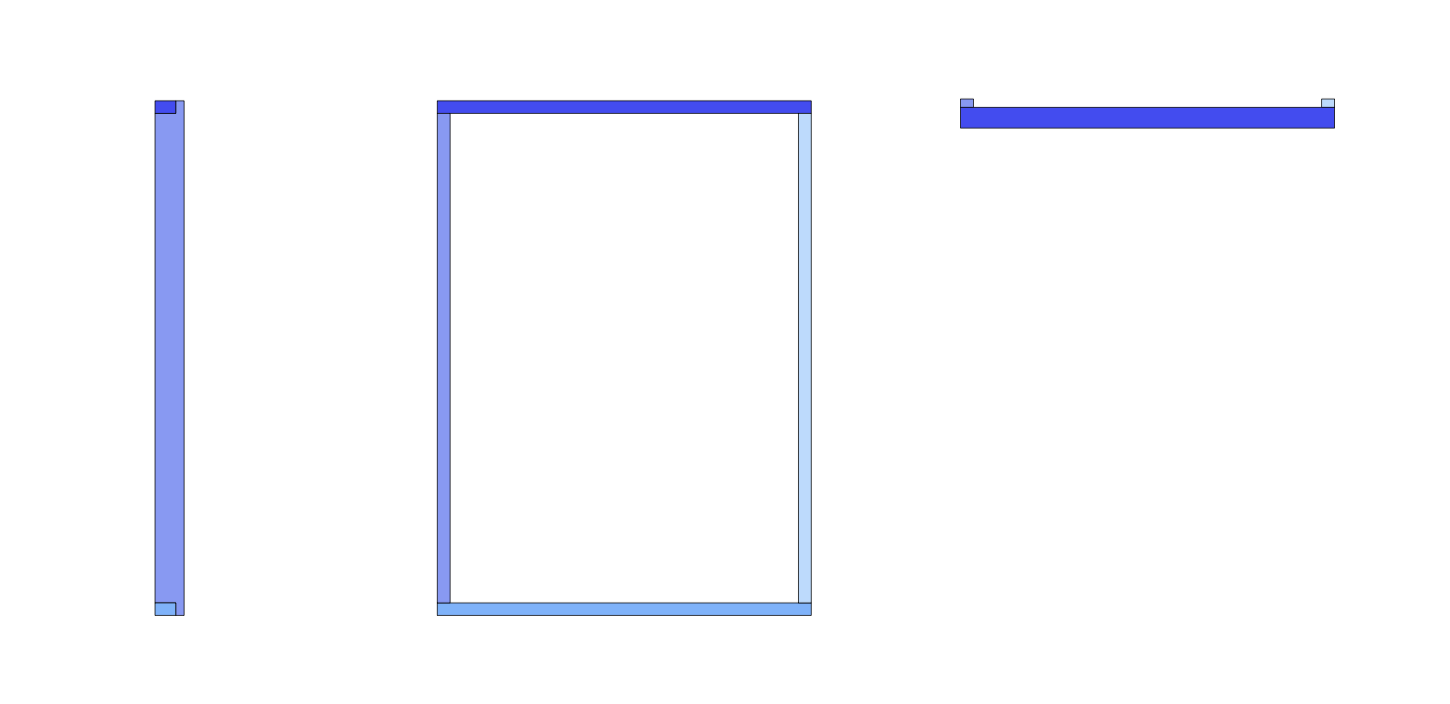

Elementos

1.
Elements

2.
Desennhos técnicos

2.

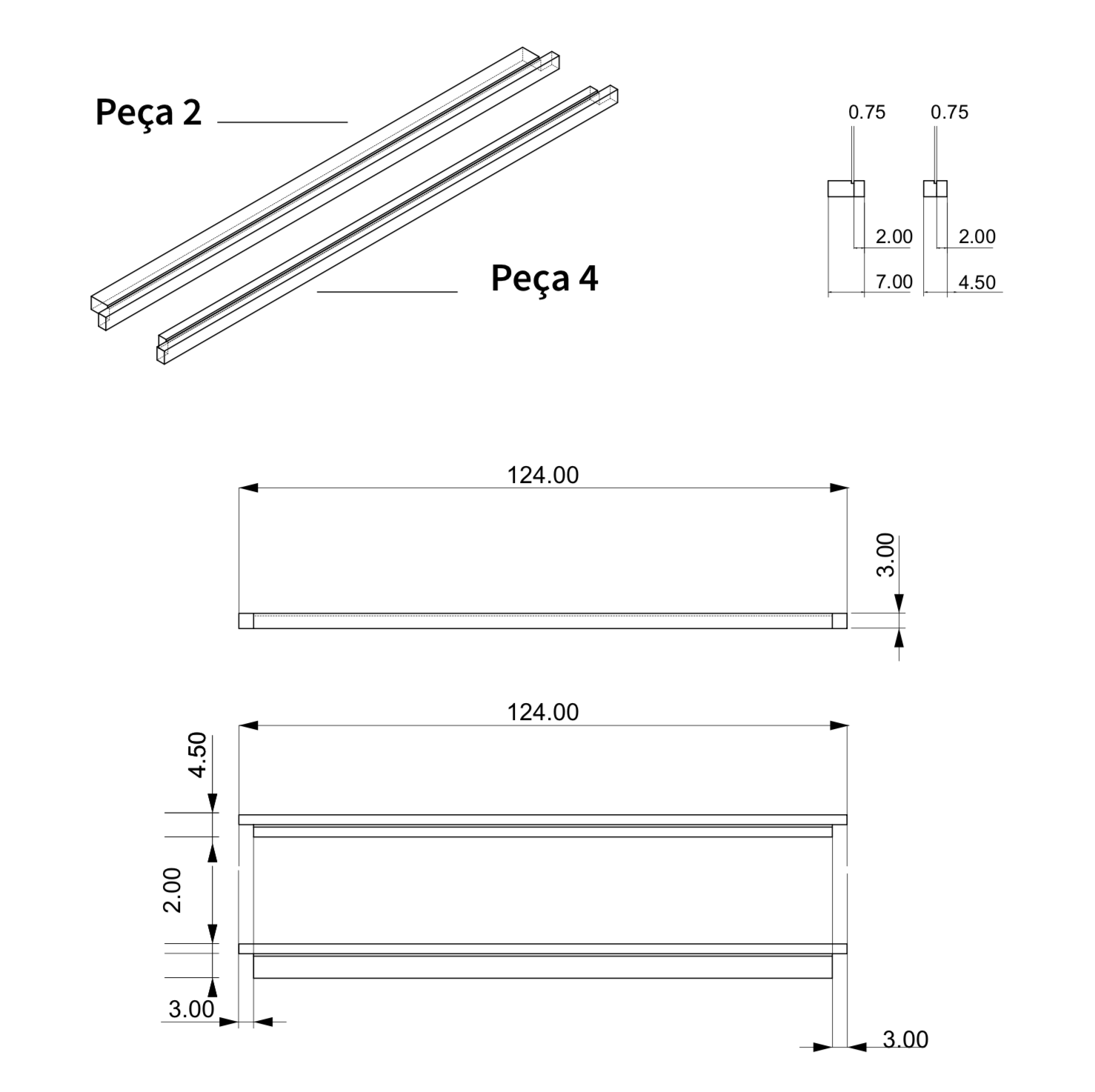

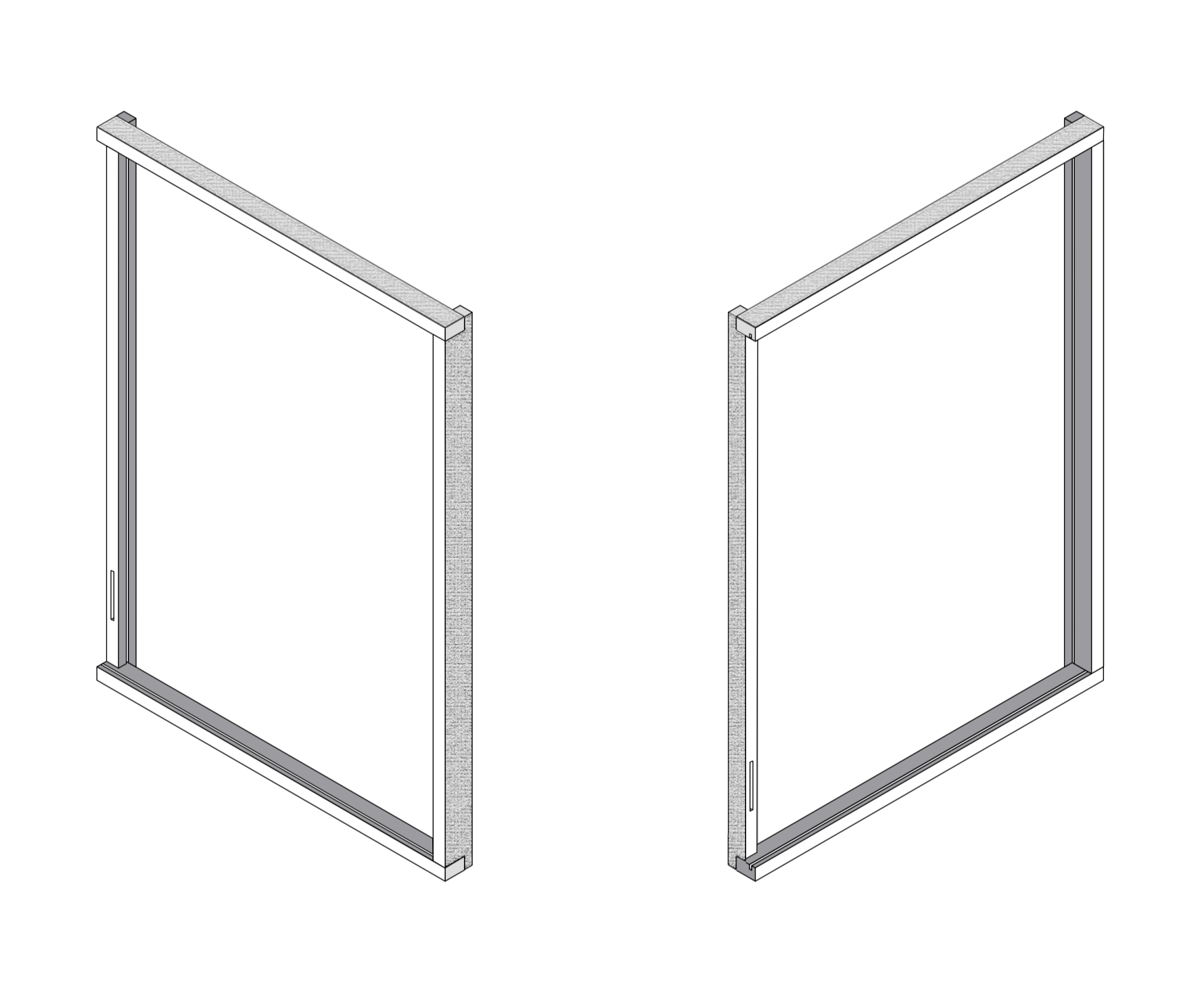

Technical drawings

3.
Indicação materiais

3.

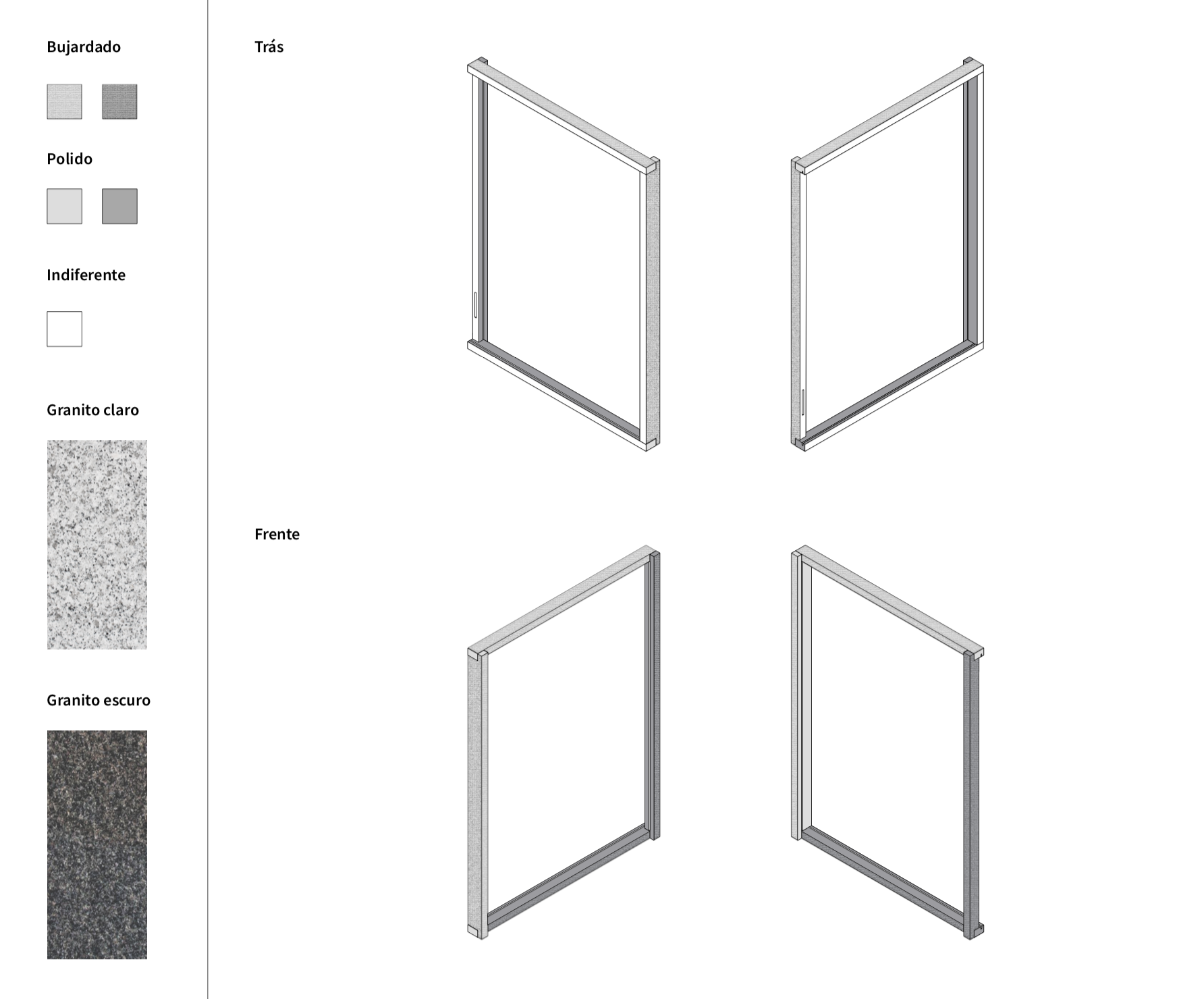

Material indications

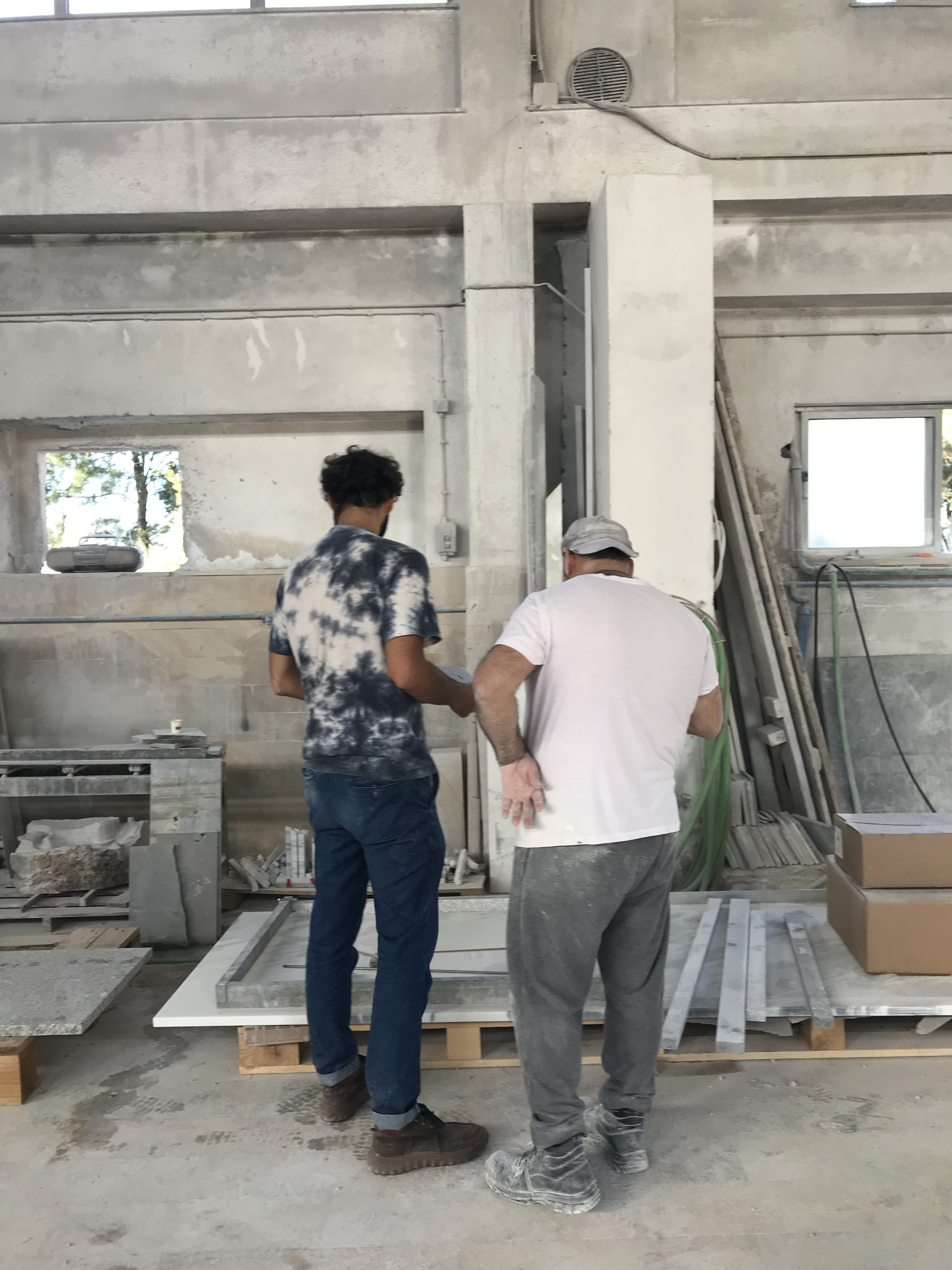

Processo
Process
Info adicionais Additional Info

O Hub Criativo da Mouraria é uma incubadora de projetos e ideias de negócio nas áreas das Indústrias Culturais e Criativas do Município de Lisboa.

The Mouraria Creative Hub is an incubator for projects and business ideas in the areas of the Cultural and Creative Industries of the Municipality of Lisbon.

Cliente

Hub criativo da Mouraria

Contribuidores

DESIGNERS » Lorenzo Scodeller Inês Soares

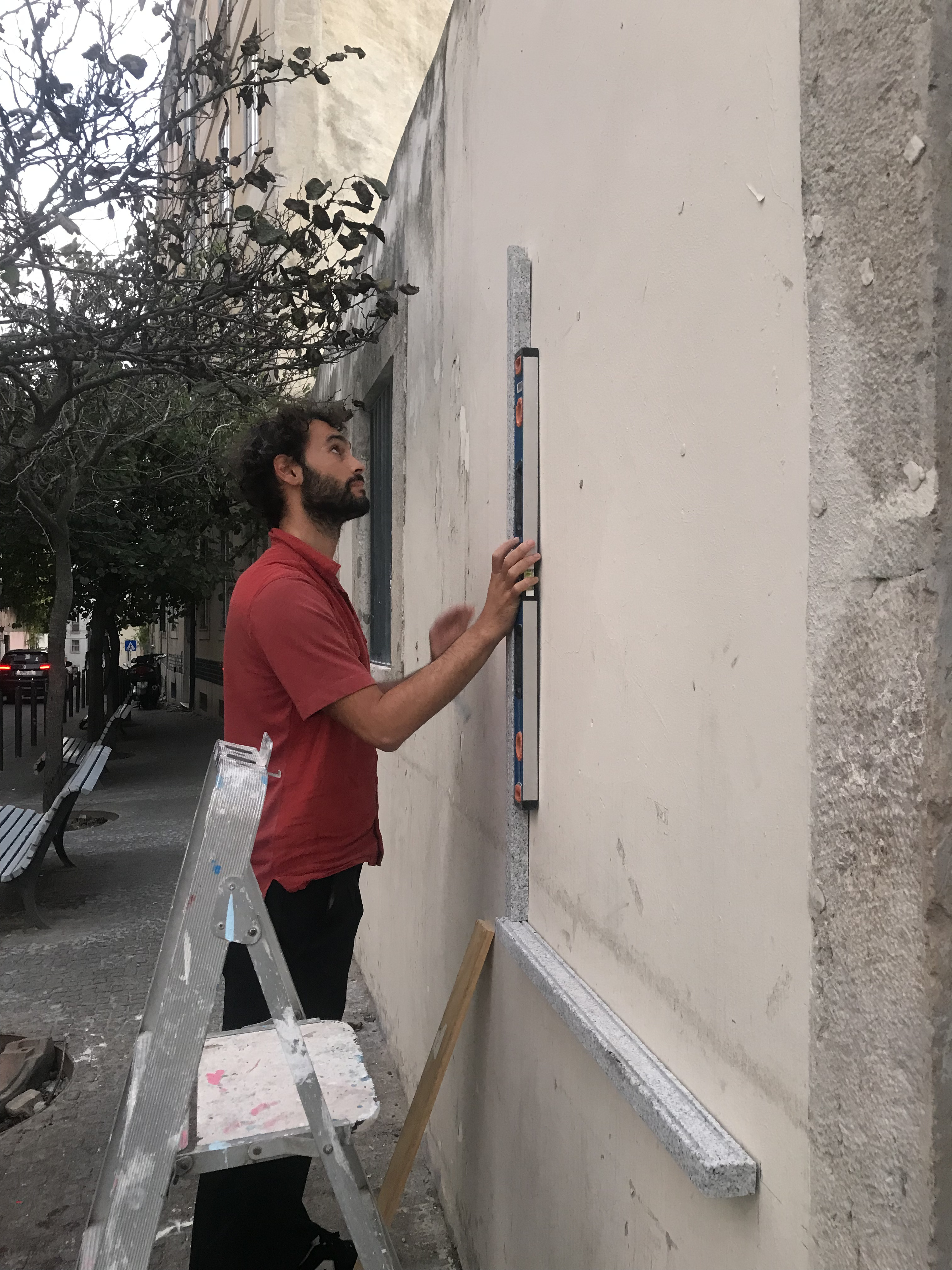

MONTAGEM » Rafael Sabino

Client

Hub criativo da Mouraria

Contributors

DESIGNERS » Lorenzo Scodeller Inês Soares
MONTAGEM » Rafael Sabino
